( Allow 8k weight 103cm long x 19cm x 9cm packed ready for your collection by https://www.parcel2go.com/ )

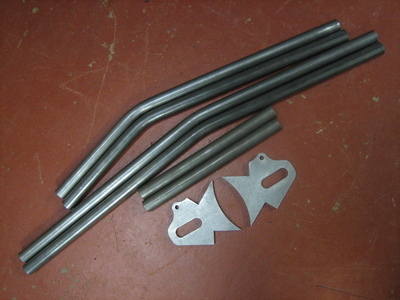

Kit includes ONE pair of laser cut 10mm thick steel axle plates with sissy bar mountings. The 20mm axle slot ( also for 3/4" axles ) or use adapting sleeve/spacers for smaller diameter spindles, giving you 6" axle centre height to bottom of frame.

Made from Electric Resistant Welded steel tubing..similar to your everyday mass produced Honda - Yamaha - Suzuki old framework....only ours is probably double the wall thickness at 3.25mm.

For this listing we supply 2 x 34" top rails.. 2 x 26 3/16" bottom rails.. 2 x 12" cross tubes. These lengths should allow you to trim off to suit your needs ( gives a 31" axle centre to the ends of the top & bottom rails ) this type of tube will allow minor adjustments to the bend angle to align up with your existing frame, a well fixed vice will be required

Photo shows our original BARE BONES FRAME from back in the eighties
( As supplied to many shops back then, enabling the building of their customers bikes )
( Frame Kits for 2 & 4 cylinders & V-Twins are also available )
 (( + Single Top Tube & hardtail Jap swingarm frame conversions  ))
I have listed photos showing a completed frame for reference only

Photo below is an example of one welded up....which are availble in another listing

THIS SALE IS NOT FOR A WELDED FRAME OR HARDTAIL BELOW

Just examples of what can be done with our products
